Фитинги
Производство компонентов промышленной трубопроводной арматуры, изготовление сборок для подачи технических и медицинских газов, оказание сопутствующих услуг
Производство компонентов промышленной трубопроводной арматуры, изготовление сборок для подачи технических и медицинских газов, оказание сопутствующих услуг

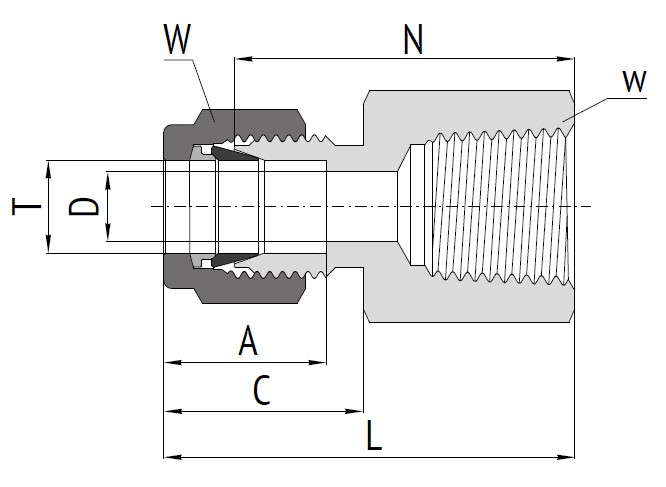

| Кодировка | Материал | D | L | Типоразмер концевого соединения 1 | Типоразмер концевого соединения 2 | ||
|---|---|---|---|---|---|---|---|
| 1 | 204-3MMx1/8N-SS | SS316 | 2 .4 | 28 .7 | 3мм | 1/8 NPT | |
| 2 | 204-3MMx1/4N-SS | SS316 | 2 .4 | 33 .5 | 3мм | 1/4 NPT | |
| 3 | 204-6MMx1/8N-SS | SS316 | 4 .8 | 31 .3 | 6мм | 1/8 NPT | |
| 4 | 204-6MMx1/4N-SS | SS316 | 4 .8 | 35 .8 | 6мм | 1/4 NPT | |
| 5 | 204-6MMx3/8N-SS | SS316 | 4 .8 | 36 .9 | 6мм | 3/8 NPT | |
| 6 | 204-6MMx1/2N-SS | SS316 | 4 .8 | 42 .5 | 6мм | 1/2 NPT | |
| 7 | 204-8MMx1/8N-SS | SS316 | 6 .4 | 32 .1 | 8мм | 1/8 NPT | |
| 8 | 204-8MMx1/4N-SS | SS316 | 6 .4 | 37 .0 | 8мм | 1/4 NPT | |
| 9 | 204-8MMx3/8N-SS | SS316 | 6 .4 | 37 .7 | 8мм | 3/8 NPT | |
| 10 | 204-8MMx1/2N-SS | SS316 | 6 .4 | 43 .3 | 8мм | 1/2 NPT | |
| 11 | 204-10MMx1/8N-SS | SS316 | 7 .9 | 33 .0 | 10мм | 1/8 NPT | |
| 12 | 204-10MMx1/4N-SS | SS316 | 7 .9 | 37 .2 | 10мм | 1/4 NPT | |
| 13 | 204-10MMx3/8N-SS | SS316 | 7 .9 | 38 .6 | 10мм | 3/8 NPT | |
| 14 | 204-10MMx1/2N-SS | SS316 | 7 .9 | 44 .2 | 10мм | 1/2 NPT | |
| 15 | 204-12MMx1/8N-SS | SS316 | 9 .5 | 38 .5 | 12мм | 1/8 NPT | |
| 16 | 204-12MMx1/4N-SS | SS316 | 9 .5 | 40 .3 | 12мм | 1/4 NPT | |
| 17 | 204-12MMx3/8N-SS | SS316 | 9 .5 | 41 .1 | 12мм | 3/8 NPT | |
| 18 | 204-12MMx1/2N-SS | SS316 | 9 .5 | 46 .7 | 12мм | 1/2 NPT | |
| 19 | 204-12MMx3/4N-SS | SS316 | 9 .5 | 49 .0 | 12мм | 3/4 NPT | |
| 20 | 204-14MMx1/2N-SS | SS316 | 11 .1 | 46 .7 | 14мм | 1/2 NPT | |
| 21 | 204-15MMx1/2N-SS | SS316 | 11 .9 | 46 .7 | 15мм | 1/2 NPT | |
| 22 | 204-16MMx1/2N-SS | SS316 | 12 .7 | 46 .9 | 16мм | 1/2 NPT | |
| 23 | 204-20MMx1/2N-SS | SS316 | 15 .9 | 47 .9 | 20мм | 1/2 NPT | |
| 24 | 204-20MMx3/4N-SS | SS316 | 15 .9 | 49 .7 | 20мм | 3/4 NPT | |
| 25 | 204-22MMx3/4N-SS | SS316 | 18 .3 | 49 .7 | 22мм | 3/4 NPT | |
| 26 | 204-22MMx1N-SS | SS316 | 18 .3 | 57 .9 | 22мм | 1 NPT | |
| 27 | 204-25MMx3/4N-SS | SS316 | 21 .8 | 53 .4 | 25мм | 3/4 NPT | |
| 28 | 204-25MMx1N-SS | SS316 | 21 .8 | 62 .3 | 25мм | 1 NPT | |
| 29 | 204-3MMx1/8R-SS | SS316 | 2 .4 | 28 .7 | 3мм | 1/8 BSPT | |
| 30 | 204-3MMx1/4R-SS | SS316 | 2 .4 | 33 .5 | 3мм | 1/4 BSPT | |
| 31 | 204-6MMx1/8R-SS | SS316 | 4 .8 | 31 .3 | 6мм | 1/8 BSPT | |
| 32 | 204-6MMx1/4R-SS | SS316 | 4 .8 | 35 .8 | 6мм | 1/4 BSPT | |
| 33 | 204-6MMx3/8R-SS | SS316 | 4 .8 | 36 .9 | 6мм | 3/8 BSPT | |
| 34 | 204-6MMx1/2R-SS | SS316 | 4 .8 | 42 .5 | 6мм | 1/2 BSPT | |
| 35 | 204-8MMx1/8R-SS | SS316 | 6 .4 | 32 .1 | 8мм | 1/8 BSPT | |
| 36 | 204-8MMx1/4R-SS | SS316 | 6 .4 | 37 .0 | 8мм | 1/4 BSPT | |
| 37 | 204-8MMx3/8R-SS | SS316 | 6 .4 | 37 .7 | 8мм | 3/8 BSPT | |
| 38 | 204-8MMx1/2R-SS | SS316 | 6 .4 | 43 .3 | 8мм | 1/2 BSPT | |
| 39 | 204-10MMx1/8R-SS | SS316 | 7 .9 | 33 .0 | 10мм | 1/8 BSPT | |
| 40 | 204-10MMx1/4R-SS | SS316 | 7 .9 | 37 .2 | 10мм | 1/4 BSPT | |
| 41 | 204-10MMx3/8R-SS | SS316 | 7 .9 | 38 .6 | 10мм | 3/8 BSPT | |
| 42 | 204-10MMx1/2R-SS | SS316 | 7 .9 | 44 .2 | 10мм | 1/2 BSPT | |
| 43 | 204-12MMx1/8R-SS | SS316 | 9 .5 | 38 .5 | 12мм | 1/8 BSPT | |
| 44 | 204-12MMx1/4R-SS | SS316 | 9 .5 | 40 .3 | 12мм | 1/4 BSPT | |
| 45 | 204-12MMx3/8R-SS | SS316 | 9 .5 | 41 .1 | 12мм | 3/8 BSPT | |
| 46 | 204-12MMx1/2R-SS | SS316 | 9 .5 | 46 .7 | 12мм | 1/2 BSPT | |
| 47 | 204-12MMx3/4R-SS | SS316 | 9 .5 | 49 .0 | 12мм | 3/4 BSPT | |
| 48 | 204-14MMx1/2R-SS | SS316 | 11 .1 | 46 .7 | 14мм | 1/2 BSPT | |
| 49 | 204-15MMx1/2R-SS | SS316 | 11 .9 | 46 .7 | 15мм | 1/2 BSPT | |
| 50 | 204-16MMx1/2R-SS | SS316 | 12 .7 | 46 .9 | 16мм | 1/2 BSPT | |
| 51 | 204-20MMx1/2R-SS | SS316 | 15 .9 | 47 .9 | 20мм | 1/2 BSPT | |
| 52 | 204-20MMx3/4R-SS | SS316 | 15 .9 | 49 .7 | 20мм | 3/4 BSPT | |
| 53 | 204-22MMx3/4R-SS | SS316 | 18 .3 | 49 .7 | 22мм | 3/4 BSPT | |
| 54 | 204-22MMx1R-SS | SS316 | 18 .3 | 57 .9 | 22мм | 1 BSPT | |
| 55 | 204-25MMx3/4R-SS | SS316 | 21 .8 | 53 .4 | 25мм | 3/4 BSPT | |
| 56 | 204-25MMx1R-SS | SS316 | 21 .8 | 62 .3 | 25мм | 1 BSPT | |
| 57 | 204-1/16x1/16N-SS | SS316 | 1 .27 | 23 .62 | 1/16 | 1/16 NPT | |
| 58 | 204-1/16x1/8N-SS | SS316 | 1 .27 | 24 .38 | 1/16 | 1/8 NPT | |
| 59 | 204-1/8x1/8N-SS | SS316 | 2 .28 | 28 .70 | 1/8 | 1/8 NPT | |
| 60 | 204-1/8x1/4N-SS | SS316 | 2 .28 | 33 .52 | 1/8 | 1/4 NPT | |
| 61 | 204-3/16x1/8N-SS | SS316 | 3 .04 | 29 .71 | 3/16 | 1/8 NPT | |
| 62 | 204-1/4x1/8N-SS | SS316 | 4 .82 | 31 .24 | 1/4 | 1/8 NPT | |
| 63 | 204-1/4x1/4N-SS | SS316 | 4 .82 | 35 .81 | 1/4 | 1/4 NPT | |
| 64 | 204-1/4x3/8N-SS | SS316 | 4 .82 | 37 .59 | 1/4 | 3/8 NPT | |
| 65 | 204-1/4x1/2N-SS | SS316 | 4 .82 | 42 .41 | 1/4 | 1/2 NPT | |
| 66 | 204-5/16x1/8N-SS | SS316 | 6 .35 | 32 .00 | 5/16 | 1/8 NPT | |
| 67 | 204-5/16x1/4N-SS | SS316 | 6 .35 | 36 .83 | 5/16 | 1/4 NPT | |
| 68 | 204-3/8x1/8N-SS | SS316 | 7 .11 | 32 .76 | 3/8 | 1/8 NPT | |
| 69 | 204-3/8x1/4N-SS | SS316 | 7 .11 | 37 .59 | 3/8 | 1/4 NPT | |
| 70 | 204-3/8x3/8N-SS | SS316 | 7 .11 | 39 .11 | 3/8 | 3/8 NPT | |
| 71 | 204-3/8x1/2N-SS | SS316 | 7 .11 | 43 .94 | 3/8 | 1/2 NPT | |
| 72 | 204-3/8x3/4N-SS | SS316 | 7 .11 | 47 .75 | 3/8 | 3/4 NPT | |
| 73 | 204-1/2x1/4N-SS | SS316 | 10 .41 | 40 .38 | 1/2 | 1/4 NPT | |
| 74 | 204-1/2x3/8N-SS | SS316 | 10 .41 | 41 .91 | 1/2 | 3/8 NPT | |
| 75 | 204-1/2x1/2N-SS | SS316 | 10 .41 | 46 .73 | 1/2 | 1/2 NPT | |
| 76 | 204-1/2x3/4N-SS | SS316 | 10 .41 | 48 .26 | 1/2 | 3/4 NPT | |
| 77 | 204-5/8x3/8N-SS | SS316 | 12 .70 | 41 .91 | 5/8 | 3/8 NPT | |
| 78 | 204-5/8x1/2N-SS | SS316 | 12 .70 | 46 .73 | 5/8 | 1/2 NPT | |
| 79 | 204-5/8x3/4N-SS | SS316 | 12 .70 | 48 .26 | 5/8 | 3/4 NPT | |
| 80 | 204-3/4x1/2N-SS | SS316 | 15 .74 | 46 .73 | 3/4 | 1/2 NPT | |
| 81 | 204-3/4x3/4N-SS | SS316 | 15 .74 | 48 .26 | 3/4 | 3/4 NPT | |
| 82 | 204-7/8x3/4N-SS | SS316 | 18 .28 | 49 .78 | 7/8 | 3/4 NPT | |
| 83 | 204-1x3/4N-SS | SS316 | 22 .35 | 53 .34 | 1 | 3/4 NPT | |
| 84 | 204-1x1N-SS | SS316 | 22 .35 | 62 .23 | 1 | 1 NPT | |
| 85 | 204-1 1/4 -1 1/4N-SS | SS316 | 27 .68 | 74 .67 | 1 1/4 | 1 1/4 NPT | |
| 86 | 204-1 1/2 -1 1/2N-SS | SS316 | 34 .03 | 83 .31 | 11/2 | 11/2 NPT | |
| 87 | 204-2x2N-SS | SS316 | 45 .97 | 101 .60 | 2 | 2 NPT | |
| 88 | 204-1/16x1/16R-SS | SS316 | 1 .27 | 23 .62 | 1/16 | 1/16 BSPT | |
| 89 | 204-1/16x1/8R-SS | SS316 | 1 .27 | 24 .38 | 1/16 | 1/8 BSPT | |
| 90 | 204-1/8x1/8R-SS | SS316 | 2 .28 | 28 .70 | 1/8 | 1/8 BSPT | |
| 91 | 204-1/8x1/4R-SS | SS316 | 2 .28 | 33 .52 | 1/8 | 1/4 BSPT | |
| 92 | 204-3/16x1/8R-SS | SS316 | 3 .04 | 29 .71 | 3/16 | 1/8 BSPT | |
| 93 | 204-1/4x1/8R-SS | SS316 | 4 .82 | 31 .24 | 1/4 | 1/8 BSPT | |
| 94 | 204-1/4x1/4R-SS | SS316 | 4 .82 | 35 .81 | 1/4 | 1/4 BSPT | |
| 95 | 204-1/4x3/8R-SS | SS316 | 4 .82 | 37 .59 | 1/4 | 3/8 BSPT | |
| 96 | 204-1/4x1/2R-SS | SS316 | 4 .82 | 42 .41 | 1/4 | 1/2 BSPT | |
| 97 | 204-5/16x1/8R-SS | SS316 | 6 .35 | 32 .00 | 5/16 | 1/8 BSPT | |
| 98 | 204-5/16x1/4R-SS | SS316 | 6 .35 | 36 .83 | 5/16 | 1/4 BSPT | |
| 99 | 204-3/8x1/8R-SS | SS316 | 7 .11 | 32 .76 | 3/8 | 1/8 BSPT | |
| 100 | 204-3/8x1/4R-SS | SS316 | 7 .11 | 37 .59 | 3/8 | 1/4 BSPT | |
| 101 | 204-3/8x3/8R-SS | SS316 | 7 .11 | 39 .11 | 3/8 | 3/8 BSPT | |
| 102 | 204-3/8x1/2R-SS | SS316 | 7 .11 | 43 .94 | 3/8 | 1/2 BSPT | |
| 103 | 204-3/8x3/4R-SS | SS316 | 7 .11 | 47 .75 | 3/8 | 3/4 BSPT | |
| 104 | 204-1/2x1/4R-SS | SS316 | 10 .41 | 40 .38 | 1/2 | 1/4 BSPT | |
| 105 | 204-1/2x3/8R-SS | SS316 | 10 .41 | 41 .91 | 1/2 | 3/8 BSPT | |
| 106 | 204-1/2x1/2R-SS | SS316 | 10 .41 | 46 .73 | 1/2 | 1/2 BSPT | |
| 107 | 204-1/2x3/4R-SS | SS316 | 10 .41 | 48 .26 | 1/2 | 3/4 BSPT | |
| 108 | 204-5/8x3/8R-SS | SS316 | 12 .70 | 41 .91 | 5/8 | 3/8 BSPT | |
| 109 | 204-5/8x1/2R-SS | SS316 | 12 .70 | 46 .73 | 5/8 | 1/2 BSPT | |
| 110 | 204-5/8x3/4R-SS | SS316 | 12 .70 | 48 .26 | 5/8 | 3/4 BSPT | |
| 111 | 204-3/4x1/2R-SS | SS316 | 15 .74 | 46 .73 | 3/4 | 1/2 BSPT | |
| 112 | 204-3/4x3/4R-SS | SS316 | 15 .74 | 48 .26 | 3/4 | 3/4 BSPT | |
| 113 | 204-7/8x3/4R-SS | SS316 | 18 .28 | 49 .78 | 7/8 | 3/4 BSPT | |
| 114 | 204-1x3/4R-SS | SS316 | 22 .35 | 53 .34 | 1 | 3/4 BSPT | |
| 115 | 204-1x1R-SS | SS316 | 22 .35 | 62 .23 | 1 | 1 BSPT | |
| 116 | 204-1 1/4 -1 1/4R-SS | SS316 | 27 .68 | 74 .67 | 1 1/4 | 1 1/4 BSPT | |
| 117 | 204-1 1/2 -1 1/2R-SS | SS316 | 34 .03 | 83 .31 | 11/2 | 11/2 BSPT | |
| 118 | 204-2x2R-SS | SS316 | 45 .97 | 101 .60 | 2 | 2 BSPT | |
| 119 | 204-3MMx1/4G-SS | SS316 | 2 .4 | 35 .3 | 3 | 1/4 BSPP | |
| 120 | 204-6MMx1/4G-SS | SS316 | 4 .8 | 37 .6 | 6 | 1/4 BSPP | |
| 121 | 204-6MMx3/8G-SS | SS316 | 4 .8 | 37 .6 | 6 | 3/8 BSPP | |
| 122 | 204-6MMx1/2G-SS | SS316 | 4 .8 | 43 .0 | 6 | 1/2 BSPP | |
| 123 | 204-8MMx1/4G-SS | SS316 | 5 .5 | 38 .5 | 8 | 1/4 BSPP | |
| 124 | 204-8MMx3/8G-SS | SS316 | 6 .5 | 36 .2 | 8 | 3/8 BSPP | |
| 125 | 204-8MMx1/2G-SS | SS316 | 7 .0 | 40 .5 | 8 | 1/2 BSPP | |
| 126 | 204-10MMx1/4G-SS | SS316 | 5 .5 | 39 .4 | 10 | 1/4 BSPP | |
| 127 | 204-10MMx3/8G-SS | SS316 | 6 .5 | 38 .8 | 10 | 3/8 BSPP | |
| 128 | 204-10MMx1/2G-SS | SS316 | 7 .0 | 41 .4 | 10 | 1/2 BSPP | |
| 129 | 204-12MMx1/4G-SS | SS316 | 5 .5 | 41 .9 | 12 | 1/4 BSPP | |
| 130 | 204-12MMx3/8G-SS | SS316 | 6 .5 | 44 .4 | 12 | 3/8 BSPP | |
| 131 | 204-12MMx1/2G-SS | SS316 | 7 .0 | 48 .2 | 12 | 1/2 BSPP | |
| 132 | 204-20MMx1/2G-SS | SS316 | 7 .0 | 54 .3 | 20 | 1/2 BSPP | |
| 133 | 204-22MMx1/2G-SS | SS316 | 7 .0 | 54 .3 | 22 | 1/2 BSPP | |
| 134 | 204-1/4x1/8G-SS | SS316 | 4 .82 | 33 .55 | 1/4 | 1/8 BSPP | |
| 135 | 204-1/4x1/4G-SS | SS316 | 4 .82 | 37 .59 | 1/4 | 1/4 BSPP | |
| 136 | 204-1/4x3/8G-SS | SS316 | 4 .82 | 37 .59 | 1/4 | 3/8 BSPP | |
| 137 | 204-1/4x1/2G-SS | SS316 | 4 .82 | 43 .43 | 1/4 | 1/2 BSPP | |
| 138 | 204-5/16x1/4G-SS | SS316 | 5 .58 | 38 .35 | 5/16 | 1/4 BSPP | |
| 139 | 204-5/16x1/2G-SS | SS316 | 7 .11 | 40 .38 | 5/16 | 1/2 BSPP | |
| 140 | 204-3/8x1/4G-SS | SS316 | 5 .58 | 39 .12 | 3/8 | 1/4 BSPP | |
| 141 | 204-3/8x3/8G-SS | SS316 | 6 .60 | 38 .61 | 3/8 | 3/8 BSPP | |
| 142 | 204-3/8x1/2G-SS | SS316 | 7 .11 | 41 .91 | 3/8 | 1/2 BSPP | |
| 143 | 204-1/2x1/4G-SS | SS316 | 5 .5 | 41 .95 | 1/2 | 1/4 BSPP | |
| 144 | 204-1/2x3/8G-SS | SS316 | 6 .60 | 44 .45 | 1/2 | 3/8 BSPP | |
| 145 | 204-1/2x1/2G-SS | SS316 | 7 .11 | 48 .26 | 1/2 | 1/2 BSPP | |
| 146 | 204-6ММхМ20х1.5-SS | SS316 | 4 .8 | 43 .7 | 6 | М20х1 .5 | |
| 147 | 204-8ММхМ20х1.5-SS | SS316 | 6 .4 | 44 .6 | 8 | М20х1 .5 | |
| 148 | 204-10ММхМ20х1.5-SS | SS316 | 7 .9 | 46 .4 | 10 | М20х1 .5 | |
| 149 | 204-12ММхМ20х1.5-SS | SS316 | 9 .5 | 48 .2 | 12 | М20х1 .5 | |
| 150 | 204-14ММхМ20х1.5-SS | SS316 | 11 .1 | 48 .2 | 14 | М20х1 .5 | |
| 151 | 204-16ММхМ20х1.5-SS | SS316 | 12 .7 | 48 .2 | 16 | М20х1 .5 |
204
