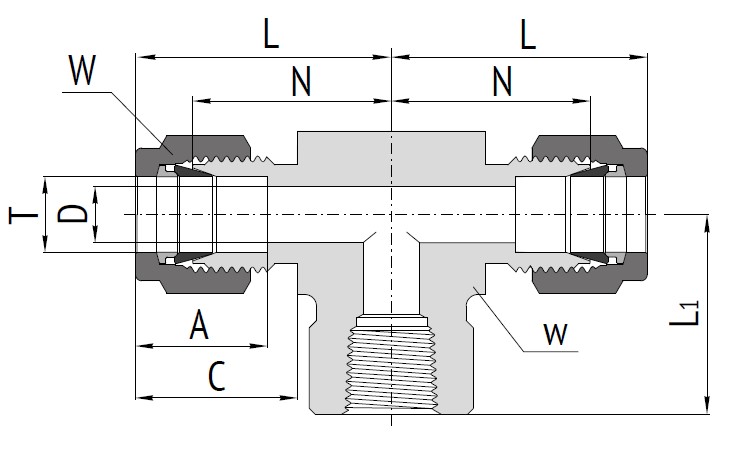

| Кодировка | Материал | D | L | L1 | Типоразмер концевого соединения 1 | Типоразмер концевого соединения 2 | ||
|---|---|---|---|---|---|---|---|---|
| 1 | 324-6MMx1/8N-SS | SS316 | 4 .8 | 27 .0 | 19 .0 | 6мм | 1/8 NPT | |
| 2 | 324-6MMx1/4N-SS | SS316 | 4 .8 | 29 .8 | 22 .4 | 6мм | 1/4 NPT | |
| 3 | 324-6MMx3/8N-SS | SS316 | 4 .8 | 31 .7 | 22 .4 | 6мм | 3/8 NPT | |
| 4 | 324-6MMx1/2N-SS | SS316 | 4 .8 | 34 .5 | 28 .4 | 6мм | 1/2 NPT | |
| 5 | 324-8MMx1/8N-SS | SS316 | 6 .4 | 29 .9 | 19 .0 | 8мм | 1/8 NPT | |
| 6 | 324-8MMx1/4N-SS | SS316 | 6 .4 | 30 .6 | 22 .4 | 8мм | 1/4 NPT | |
| 7 | 324-8MMx3/8N-SS | SS316 | 6 .4 | 32 .4 | 22 .4 | 8мм | 3/8 NPT | |
| 8 | 324-8MMx1/2N-SS | SS316 | 6 .4 | 35 .2 | 28 .4 | 8мм | 1/2 NPT | |
| 9 | 324-10MMx1/4N-SS | SS316 | 7 .9 | 33 .5 | 22 .4 | 10мм | 1/4 NPT | |
| 10 | 324-10MMx3/8N-SS | SS316 | 7 .9 | 33 .3 | 22 .4 | 10мм | 3/8 NPT | |
| 11 | 324-10MMx1/2N-SS | SS316 | 9 .5 | 33 .6 | 22 .4 | 10мм | 1/2 NPT | |
| 12 | 324-12MMx1/4N-SS | SS316 | 9 .5 | 36 .0 | 22 .4 | 12мм | 1/4 NPT | |
| 13 | 324-12MMx3/8N-SS | SS316 | 9 .5 | 36 .0 | 22 .4 | 12мм | 3/8 NPT | |
| 14 | 324-12MMx1/2N-SS | SS316 | 9 .5 | 38 .8 | 28 .4 | 12мм | 1/2 NPT | |
| 15 | 324-14MMx1/2N-SS | SS316 | 11 .1 | 38 .8 | 28 .4 | 14мм | 1/2 NPT | |
| 16 | 324-16MMx1/2N-SS | SS316 | 12 .7 | 38 .8 | 28 .7 | 16мм | 1/2 NPT | |
| 17 | 324-6MMx1/8R-SS | SS316 | 4 .8 | 27 .0 | 19 .0 | 6мм | 1/8 BSPT | |
| 18 | 324-6MMx1/4R-SS | SS316 | 4 .8 | 29 .8 | 22 .4 | 6мм | 1/4 BSPT | |
| 19 | 324-6MMx3/8R-SS | SS316 | 4 .8 | 31 .7 | 22 .4 | 6мм | 3/8 BSPT | |
| 20 | 324-6MMx1/2R-SS | SS316 | 4 .8 | 34 .5 | 28 .4 | 6мм | 1/2 BSPT | |
| 21 | 324-8MMx1/8R-SS | SS316 | 6 .4 | 29 .9 | 19 .0 | 8мм | 1/8 BSPT | |
| 22 | 324-8MMx1/4R-SS | SS316 | 6 .4 | 30 .6 | 22 .4 | 8мм | 1/4 BSPT | |
| 23 | 324-8MMx3/8R-SS | SS316 | 6 .4 | 32 .4 | 22 .4 | 8мм | 3/8 BSPT | |
| 24 | 324-8MMx1/2R-SS | SS316 | 6 .4 | 35 .2 | 28 .4 | 8мм | 1/2 BSPT | |
| 25 | 324-10MMx1/4R-SS | SS316 | 7 .9 | 33 .5 | 22 .4 | 10мм | 1/4 BSPT | |
| 26 | 324-10MMx3/8R-SS | SS316 | 7 .9 | 33 .3 | 22 .4 | 10мм | 3/8 BSPT | |
| 27 | 324-10MMx1/2R-SS | SS316 | 9 .5 | 33 .6 | 22 .4 | 10мм | 1/2 BSPT | |
| 28 | 324-12MMx1/4R-SS | SS316 | 9 .5 | 36 .0 | 22 .4 | 12мм | 1/4 BSPT | |
| 29 | 324-12MMx3/8R-SS | SS316 | 9 .5 | 36 .0 | 22 .4 | 12мм | 3/8 BSPT | |
| 30 | 324-12MMx1/2R-SS | SS316 | 9 .5 | 38 .8 | 28 .4 | 12мм | 1/2 BSPT | |
| 31 | 324-14MMx1/2R-SS | SS316 | 11 .1 | 38 .8 | 28 .4 | 14мм | 1/2 BSPT | |
| 32 | 324-16MMx1/2R-SS | SS316 | 12 .7 | 38 .8 | 28 .7 | 16мм | 1/2 BSPT | |
| 33 | 324-1/8x1/8N-SS | SS316 | 2 .28 | 24 .38 | 19 .05 | 1/8 | 1/8 NPT | |
| 34 | 324-1/4x1/8N-SS | SS316 | 4 .82 | 26 .92 | 19 .05 | 1/4 | 1/8 NPT | |
| 35 | 324-1/4x1/4N-SS | SS316 | 4 .82 | 29 .71 | 22 .35 | 1/4 | 1/4 NPT | |
| 36 | 324-3/8x1/4N-SS | SS316 | 7 .11 | 31 .24 | 22 .35 | 3/8 | 1/4 NPT | |
| 37 | 324-1/2x1/4N-SS | SS316 | 10 .41 | 36 .06 | 22 .35 | 1/2 | 1/4 NPT | |
| 38 | 324-1/2x3/8N-SS | SS316 | 10 .41 | 36 .06 | 22 .35 | 1/2 | 3/8 NPT | |
| 39 | 324-1/2x1/2N-SS | SS316 | 10 .41 | 38 .86 | 28 .44 | 1/2 | 1/2 NPT | |
| 40 | 324-5/8x1/2N-SS | SS316 | 1270 | 38 .86 | 28 .44 | 5/8 | 1/2 NPT | |
| 41 | 324-3/4x3/4N-SS | SS316 | 15 .74 | 44 .70 | 31 .75 | 3/4 | 3/4 NPT | |
| 42 | 324-1x3/4N-SS | SS316 | 22 .35 | 49 .02 | 31 .75 | 1 | 3/4 NPT | |
| 43 | 324-1x1N-SS | SS316 | 22 .35 | 53 .59 | 38 .10 | 1 | 1 NPT | |
| 44 | 324-1/8x1/8R-SS | SS316 | 2 .28 | 24 .38 | 19 .05 | 1/8 | 1/8 BSPT | |
| 45 | 324-1/4x1/8R-SS | SS316 | 4 .82 | 26 .92 | 19 .05 | 1/4 | 1/8 BSPT | |
| 46 | 324-1/4x1/4R-SS | SS316 | 4 .82 | 29 .71 | 22 .35 | 1/4 | 1/4 BSPT | |
| 47 | 324-3/8x1/4R-SS | SS316 | 7 .11 | 31 .24 | 22 .35 | 3/8 | 1/4 BSPT | |
| 48 | 324-1/2x1/4R-SS | SS316 | 10 .41 | 36 .06 | 22 .35 | 1/2 | 1/4 BSPT | |
| 49 | 324-1/2x3/8R-SS | SS316 | 10 .41 | 36 .06 | 22 .35 | 1/2 | 3/8 BSPT | |
| 50 | 324-1/2x1/2R-SS | SS316 | 10 .41 | 38 .86 | 28 .44 | 1/2 | 1/2 BSPT | |
| 51 | 324-5/8x1/2R-SS | SS316 | 1270 | 38 .86 | 28 .44 | 5/8 | 1/2 BSPT | |
| 52 | 324-3/4x3/4R-SS | SS316 | 15 .74 | 44 .70 | 31 .75 | 3/4 | 3/4 BSPT | |
| 53 | 324-1x3/4R-SS | SS316 | 22 .35 | 49 .02 | 31 .75 | 1 | 3/4 BSPT | |
| 54 | 324-1x1R-SS | SS316 | 22 .35 | 53 .59 | 38 .10 | 1 | 1 BSPT |
