Фитинги
Производство компонентов промышленной трубопроводной арматуры, изготовление сборок для подачи технических и медицинских газов, оказание сопутствующих услуг
Производство компонентов промышленной трубопроводной арматуры, изготовление сборок для подачи технических и медицинских газов, оказание сопутствующих услуг

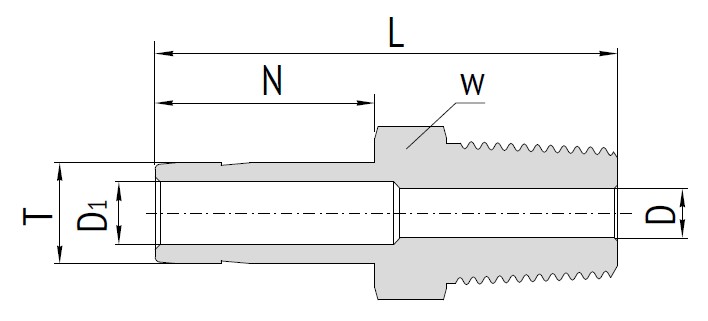

| Кодировка | Материал | D | L | Типоразмер концевого соединения 1 | Типоразмер концевого соединения 2 | ||
|---|---|---|---|---|---|---|---|
| 1 | 601-6MMx1/8N-SS | SS316 | 4 .6 | 32 .8 | 6мм | 1/8 NPT | |
| 2 | 601-6MMx1/4N-SS | SS316 | 4 .6 | 38 .1 | 6мм | 1/4 NPT | |
| 3 | 601-8MMx1/4N-SS | SS316 | 6 .3 | 39 .1 | 8мм | 1/4 NPT | |
| 4 | 601-10MMx1/4N-SS | SS316 | 7 .7 | 39 .9 | 10мм | 1/4 NPT | |
| 5 | 601-10MMx3/8N-SS | SS316 | 7 .7 | 40 .6 | 10мм | 3/8 NPT | |
| 6 | 601-10MMx1/2N-SS | SS316 | 11 .9 | 45 .2 | 10мм | 1/2 NPT | |
| 7 | 601-12MMx1/4N-SS | SS316 | 7 .1 | 46 .5 | 12мм | 1/4 NPT | |
| 8 | 601-12MMx3/8N-SS | SS316 | 9 .1 | 46 .2 | 12мм | 3/8 NPT | |
| 9 | 601-12MMx1/2N-SS | SS316 | 11 .9 | 51 .8 | 12мм | 1/2 NPT | |
| 10 | 601-18MMx1/2N-SS | SS316 | 11 .9 | 53 .2 | 18мм | 1/2 NPT | |
| 11 | 601-18MMx3/4N-SS | SS316 | 15 .9 | 53 .2 | 18мм | 3/4 NPT | |
| 12 | 601-28MMx1N-SS | SS316 | 22 .2 | 74 .7 | 28мм | 1 NPT | |
| 13 | 601-28MMx1 1/4N-SS | SS316 | 23 .8 | 76 .2 | 28мм | 1 1/4 NPT | |
| 14 | 601-32MMx1 1/4N-SS | SS316 | 27 .4 | 81 .0 | 32мм | 1 1/4 NPT | |
| 15 | 601-38MMx1 1/2N-SS | SS316 | 33 .3 | 92 .2 | 38мм | 11/2 NPT | |
| 16 | 601-6MMx1/8R-SS | SS316 | 4 .6 | 32 .8 | 6мм | 1/8 BSPT | |
| 17 | 601-6MMx1/4R-SS | SS316 | 4 .6 | 38 .1 | 6мм | 1/4 BSPT | |
| 18 | 601-8MMx1/4R-SS | SS316 | 6 .3 | 39 .1 | 8мм | 1/4 BSPT | |
| 19 | 601-10MMx1/4R-SS | SS316 | 7 .7 | 39 .9 | 10мм | 1/4 BSPT | |
| 20 | 601-10MMx3/8R-SS | SS316 | 7 .7 | 40 .6 | 10мм | 3/8 BSPT | |
| 21 | 601-10MMx1/2R-SS | SS316 | 11 .9 | 45 .2 | 10мм | 1/2 BSPT | |
| 22 | 601-12MMx1/4R-SS | SS316 | 7 .1 | 46 .5 | 12мм | 1/4 BSPT | |
| 23 | 601-12MMx3/8R-SS | SS316 | 9 .1 | 46 .2 | 12мм | 3/8 BSPT | |
| 24 | 601-12MMx1/2R-SS | SS316 | 11 .9 | 51 .8 | 12мм | 1/2 BSPT | |
| 25 | 601-18MMx1/2R-SS | SS316 | 11 .9 | 53 .2 | 18мм | 1/2 BSPT | |
| 26 | 601-18MMx3/4R-SS | SS316 | 15 .9 | 53 .2 | 18мм | 3/4 BSPT | |
| 27 | 601-28MMx1R-SS | SS316 | 22 .2 | 74 .7 | 28мм | 1 BSPT | |
| 28 | 601-28MMx1 1/4R-SS | SS316 | 23 .8 | 76 .2 | 28мм | 1 1/4 BSPT | |
| 29 | 601-32MMx1 1/4R-SS | SS316 | 27 .4 | 81 .0 | 32мм | 1 1/4 BSPT | |
| 30 | 601-38MMx1 1/2R-SS | SS316 | 33 .3 | 92 .2 | 38мм | 11/2 BSPT | |
| 31 | 601-1/8x1/8N-SS | SS316 | 4 .57 | 29 .50 | 1/8 | 1/8 NPT | |
| 32 | 601-1/8x1/4N-SS | SS316 | 7 .11 | 34 .80 | 1/8 | 1/4 NPT | |
| 33 | 601-3/16x1/8N-SS | SS316 | 4 .57 | 30 .22 | 3/16 | 1/8 NPT | |
| 34 | 601-3/16x1/4N-SS | SS316 | 7 .11 | 35 .56 | 3/16 | 1/4 NPT | |
| 35 | 601-1/4x1/8N-SS | SS316 | 4 .57 | 31 .80 | 1/4 | 1/8 NPT | |
| 36 | 601-1/4x1/4N-SS | SS316 | 74 .11 | 37 .08 | 1/4 | 1/4 NPT | |
| 37 | 601-1/4x3/8N-SS | SS316 | 10 .41 | 37 .84 | 1/4 | 3/8 NPT | |
| 38 | 601-1/4x1/2N-SS | SS316 | 12 .70 | 43 .43 | 1/4 | 1/2 NPT | |
| 39 | 601-5/16x1/8N-SS | SS316 | 4 .57 | 32 .76 | 5/16 | 1/8 NPT | |
| 40 | 601-5/16x1/4N-SS | SS316 | 7 .11 | 38 .10 | 5/16 | 1/4 NPT | |
| 41 | 601-3/8x1/8N-SS | SS316 | 4 .57 | 33 .50 | 3/8 | 1/8 NPT | |
| 42 | 601-3/8x1/4N-SS | SS316 | 7 .11 | 38 .90 | 3/8 | 1/4 NPT | |
| 43 | 601-3/8x3/8N-SS | SS316 | 10 .41 | 39 .60 | 3/8 | 3/8 NPT | |
| 44 | 601-3/8x1/2N-SS | SS316 | 12 .70 | 45 .20 | 3/8 | 1/2 NPT | |
| 45 | 601-1/2x1/4N-SS | SS316 | 7 .11 | 44 .50 | 1/2 | 1/4 NPT | |
| 46 | 601-1/2x3/8N-SS | SS316 | 10 .41 | 45 .20 | 1/2 | 3/8 NPT | |
| 47 | 601-1/2x1/2N-SS | SS316 | 12 .70 | 50 .50 | 1/2 | 1/2 NPT | |
| 48 | 601-5/8x3/8N-SS | SS316 | 10 .41 | 47 .40 | 5/8 | 3/8 NPT | |
| 49 | 601-5/8x1/2N-SS | SS316 | 12 .70 | 52 .30 | 5/8 | 1/2 NPT | |
| 50 | 601-5/8x3/4N-SS | SS316 | 18 .28 | 52 .30 | 5/8 | 3/4 NPT | |
| 51 | 601-3/4x1/2N-SS | SS316 | 12 .70 | 52 .30 | 3/4 | 1/2 NPT | |
| 52 | 601-3/4x3/4N-SS | SS316 | 18 .28 | 52 .30 | 3/4 | 3/4 NPT | |
| 53 | 601-3/4x1N-SS | SS316 | 22 .35 | 57 .91 | 3/4 | 1 NPT | |
| 54 | 601-7/8x3/4N-SS | SS316 | 18 .28 | 54 .30 | 7/8 | 3/4 NPT | |
| 55 | 601-1x3/4N-SS | SS316 | 18 .28 | 58 .70 | 1 | 3/4 NPT | |
| 56 | 601-1x1N-SS | SS316 | 22 .35 | 66 .00 | 1 | 1 NPT | |
| 57 | 601-1 1/4 -1 1/4N-SS | SS316 | 27 .68 | 80 .26 | 1 1/4 | 1 1/4 NPT | |
| 58 | 601-1 1/2 -1 1/2N-SS | SS316 | 33 .81 | 94 .48 | 11/2 | 11/2 NPT | |
| 59 | 601-2x2N-SS | SS316 | 44 .45 | 119 .38 | 2 | 2 NPT | |
| 60 | 601-1/8x1/8R-SS | SS316 | 4 .57 | 29 .50 | 1/8 | 1/8 BSPT | |
| 61 | 601-1/8x1/4R-SS | SS316 | 7 .11 | 34 .80 | 1/8 | 1/4 BSPT | |
| 62 | 601-3/16x1/8R-SS | SS316 | 4 .57 | 30 .22 | 3/16 | 1/8 BSPT | |
| 63 | 601-3/16x1/4R-SS | SS316 | 7 .11 | 35 .56 | 3/16 | 1/4 BSPT | |
| 64 | 601-1/4x1/8R-SS | SS316 | 4 .57 | 31 .80 | 1/4 | 1/8 BSPT | |
| 65 | 601-1/4x1/4R-SS | SS316 | 74 .11 | 37 .08 | 1/4 | 1/4 BSPT | |
| 66 | 601-1/4x3/8R-SS | SS316 | 10 .41 | 37 .84 | 1/4 | 3/8 BSPT | |
| 67 | 601-1/4x1/2R-SS | SS316 | 12 .70 | 43 .43 | 1/4 | 1/2 BSPT | |
| 68 | 601-5/16x1/8R-SS | SS316 | 4 .57 | 32 .76 | 5/16 | 1/8 BSPT | |
| 69 | 601-5/16x1/4R-SS | SS316 | 7 .11 | 38 .10 | 5/16 | 1/4 BSPT | |
| 70 | 601-3/8x1/8R-SS | SS316 | 4 .57 | 33 .50 | 3/8 | 1/8 BSPT | |
| 71 | 601-3/8x1/4R-SS | SS316 | 7 .11 | 38 .90 | 3/8 | 1/4 BSPT | |
| 72 | 601-3/8x3/8R-SS | SS316 | 10 .41 | 39 .60 | 3/8 | 3/8 BSPT | |
| 73 | 601-3/8x1/2R-SS | SS316 | 12 .70 | 45 .20 | 3/8 | 1/2 BSPT | |
| 74 | 601-1/2x1/4R-SS | SS316 | 7 .11 | 44 .50 | 1/2 | 1/4 BSPT | |
| 75 | 601-1/2x3/8R-SS | SS316 | 10 .41 | 45 .20 | 1/2 | 3/8 BSPT | |
| 76 | 601-1/2x1/2R-SS | SS316 | 12 .70 | 50 .50 | 1/2 | 1/2 BSPT | |
| 77 | 601-5/8x3/8R-SS | SS316 | 10 .41 | 47 .40 | 5/8 | 3/8 BSPT | |
| 78 | 601-5/8x1/2R-SS | SS316 | 12 .70 | 52 .30 | 5/8 | 1/2 BSPT | |
| 79 | 601-5/8x3/4R-SS | SS316 | 18 .28 | 52 .30 | 5/8 | 3/4 BSPT | |
| 80 | 601-3/4x1/2R-SS | SS316 | 12 .70 | 52 .30 | 3/4 | 1/2 BSPT | |
| 81 | 601-3/4x3/4R-SS | SS316 | 18 .28 | 52 .30 | 3/4 | 3/4 BSPT | |
| 82 | 601-3/4x1R-SS | SS316 | 22 .35 | 57 .91 | 3/4 | 1 BSPT | |
| 83 | 601-7/8x3/4R-SS | SS316 | 18 .28 | 54 .30 | 7/8 | 3/4 BSPT | |
| 84 | 601-1x3/4R-SS | SS316 | 18 .28 | 58 .70 | 1 | 3/4 BSPT | |
| 85 | 601-1x1R-SS | SS316 | 22 .35 | 66 .00 | 1 | 1 BSPT | |
| 86 | 601-1 1/4 -1 1/4R-SS | SS316 | 27 .68 | 80 .26 | 1 1/4 | 1 1/4 BSPT | |
| 87 | 601-1 1/2 -1 1/2R-SS | SS316 | 33 .81 | 94 .48 | 11/2 | 11/2 BSPT | |
| 88 | 601-2x2R-SS | SS316 | 44 .45 | 119 .38 | 2 | 2 BSPT | |
| 89 | 601-6MMx1/8G-SS | SS316 | 4 .0 | 34 .3 | 6 | 1/8 BSPP | |
| 90 | 601-6MMx1/4G-SS | SS316 | 4 .1 | 39 .1 | 6 | 1/4 BSPP | |
| 91 | 601-8MMx1/4G-SS | SS316 | 5 .6 | 40 .1 | 8 | 1/4 BSPP | |
| 92 | 601-10MMx1/4G-SS | SS316 | 5 .9 | 40 .9 | 10 | 1/4 BSPP | |
| 93 | 601-10MMx3/8G-SS | SS316 | 7 .1 | 41 .7 | 10 | 3/8 BSPP | |
| 94 | 601-10MMx1/2G-SS | SS316 | 7 .1 | 44 .7 | 10 | 1/2 BSPP | |
| 95 | 601-12MMx1/4G-SS | SS316 | 5 .9 | 46 .7 | 12 | 1/4 BSPP | |
| 96 | 601-12MMx3/8G-SS | SS316 | 7 .9 | 47 .2 | 12 | 3/8 BSPP | |
| 97 | 601-12MMx1/2G-SS | SS316 | 8 .8 | 50 .5 | 12 | 1/2 BSPP | |
| 98 | 601-18MMx1/2G-SS | SS316 | 11 .9 | 52 .1 | 18 | 1/2 BSPP | |
| 99 | 601-18MMx3/4G-SS | SS316 | 13 .9 | 56 .1 | 18 | 3/4 BSPP | |
| 100 | 601-28MMx1G-SS | SS316 | 19 .8 | 72 .9 | 28 | 1 BSPP | |
| 101 | 601-28MMx1 1/4G-SS | SS316 | 22 .5 | 77 .0 | 28 | 1 1/4 BSPP | |
| 102 | 601-30MMx1 1/4G-SS | SS316 | 24 .3 | 80 .8 | 30 | 1 1/4 BSPP | |
| 103 | 601-32MMx1 1/4G-SS | SS316 | 26 .5 | 81 .8 | 32 | 1 1/4 BSPP | |
| 104 | 601-38MMx1 1/2 G-SS | SS316 | 31 .6 | 94 .5 | 38 | 1 1/2 BSPP | |
| 105 | 601-1/8x1/8G-SS | SS316 | 2 .29 | 30 .99 | 1/8 | 1/8 BSPP | |
| 106 | 601-1/8x1/4G-SS | SS316 | 4 .82 | 35 .81 | 1/8 | 1/4 BSPP | |
| 107 | 601-1/4x1/8G-SS | SS316 | 4 .82 | 33 .27 | 1/4 | 1/8 BSPP | |
| 108 | 601-1/4x1/4G-SS | SS316 | 7 .11 | 38 .10 | 1/4 | 1/4 BSPP | |
| 109 | 601-3/8x1/4G-SS | SS316 | 7 .11 | 39 .88 | 3/8 | 1/4 BSPP | |
| 110 | 601-3/8x3/8G-SS | SS316 | 9 .90 | 40 .64 | 3/8 | 3/8 BSPP | |
| 111 | 601-1/2x1/4G-SS | SS316 | 9 .90 | 45 .47 | 1/2 | 1/4 BSPP | |
| 112 | 601-1/2x3/8G-SS | SS316 | 12 .70 | 46 .23 | 1/2 | 3/8 BSPP | |
| 113 | 601-1/2x1/2G-SS | SS316 | 14 .98 | 49 .28 | 1/2 | 1/2 BSPP | |
| 114 | 601-3/4x3/4G-SS | SS316 | 20 .32 | 54 .88 | 3/4 | 3/4 BSPP | |
| 115 | 601-1x1G-SS | SS316 | 27 .68 | 64 .52 | 1 | 1 BSPP |
601
