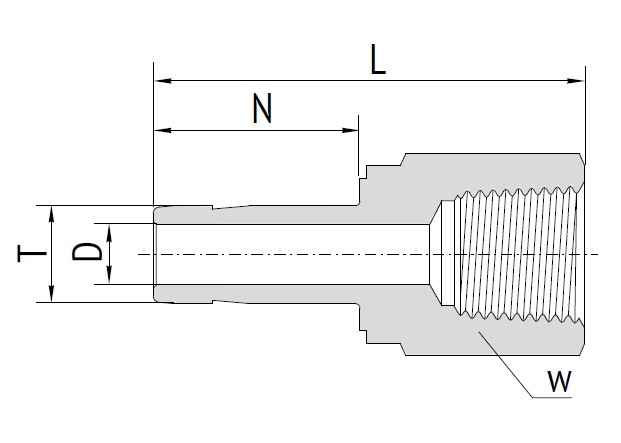

| Кодировка | Материал | D | L | Типоразмер концевого соединения 1 | Типоразмер концевого соединения 2 | ||
|---|---|---|---|---|---|---|---|
| 1 | 604-3MMx1/8N-SS | SS316 | 1 .8 | 31 .15 | 3мм | 1/8 NPT | |
| 2 | 604-6MMx1/8N-SS | SS316 | 4 .6 | 32 .5 | 6мм | 1/8 NPT | |
| 3 | 604-6MMx1/4N-SS | SS316 | 4 .6 | 37 .1 | 6мм | 1/4 NPT | |
| 4 | 604-8MMx1/4N-SS | SS316 | 6 .3 | 37 .6 | 8мм | 1/4 NPT | |
| 5 | 604-10MMx1/4N-SS | SS316 | 7 .7 | 38 .1 | 10мм | 1/4 NPT | |
| 6 | 604-10MMx3/8N-SS | SS316 | 7 .7 | 40 .1 | 10мм | 3/8 NPT | |
| 7 | 604-10MMx1/2N-SS | SS316 | 7 .7 | 46 .5 | 10мм | 1/2 NPT | |
| 8 | 604-12MMx1/4N-SS | SS316 | 9 .1 | 43 .7 | 12мм | 1/4 NPT | |
| 9 | 604-12MMx3/8N-SS | SS316 | 9 .1 | 46 .0 | 12мм | 3/8 NPT | |
| 10 | 604-12MMx1/2N-SS | SS316 | 9 .1 | 52 .3 | 12мм | 1/2 NPT | |
| 11 | 604-18MMx3/4N-SS | SS316 | 13 .9 | 54 .8 | 18мм | 3/4 NPT | |
| 12 | 604-3MMx1/8R-SS | SS316 | 1 .8 | 31 .15 | 3мм | 1/8 BSPT | |
| 13 | 604-6MMx1/8R-SS | SS316 | 4 .6 | 32 .5 | 6мм | 1/8 BSPT | |
| 14 | 604-6MMx1/4R-SS | SS316 | 4 .6 | 37 .1 | 6мм | 1/4 BSPT | |
| 15 | 604-8MMx1/4R-SS | SS316 | 6 .3 | 37 .6 | 8мм | 1/4 BSPT | |
| 16 | 604-10MMx1/4R-SS | SS316 | 7 .7 | 38 .1 | 10мм | 1/4 BSPT | |
| 17 | 604-10MMx3/8R-SS | SS316 | 7 .7 | 40 .1 | 10мм | 3/8 BSPT | |
| 18 | 604-10MMx1/2R-SS | SS316 | 7 .7 | 46 .5 | 10мм | 1/2 BSPT | |
| 19 | 604-12MMx1/4R-SS | SS316 | 9 .1 | 43 .7 | 12мм | 1/4 BSPT | |
| 20 | 604-12MMx3/8R-SS | SS316 | 9 .1 | 46 .0 | 12мм | 3/8 BSPT | |
| 21 | 604-12MMx1/2R-SS | SS316 | 9 .1 | 52 .3 | 12мм | 1/2 BSPT | |
| 22 | 604-18MMx3/4R-SS | SS316 | 13 .9 | 54 .8 | 18мм | 3/4 BSPT | |
| 23 | 604-1/8x1/8N-SS | SS316 | 1 .77 | 31 .50 | 1/8 | 1/8 NPT | |
| 24 | 604-1/8x1/4N-SS | SS316 | 1 .77 | 35 .30 | 1/8 | 1/4 NPT | |
| 25 | 604-3/16x1/8N-SS | SS316 | 3 .04 | 32 .00 | 3/16 | 1/8 NPT | |
| 26 | 604-3/16x1/4N-SS | SS316 | 3 .04 | 35 .81 | 3/16 | .1/4 NPT | |
| 27 | 604-1/4x1/8N-SS | SS316 | 4 .57 | 33 .02 | 1/4 | 1/8 NPT | |
| 28 | 604-1/4x1/4N-SS | SS316 | 4 .57 | 37 .10 | 1/4 | 1/4 NPT | |
| 29 | 604-1/4x3/8N-SS | SS316 | 4 .57 | 39 .37 | 1/4 | 3/8 NPT | |
| 30 | 604-1/4x1/2N-SS | SS316 | 4 .57 | 45 .50 | 1/4 | 1/2 NPT | |
| 31 | 604-5/16x1/8N-SS | SS316 | 6 .35 | 34 .29 | 5/16 | 1/8 NPT | |
| 32 | 604-5/16x1/4N-SS | SS316 | 6 .35 | 37 .59 | 5/16 | 1/4 NPT | |
| 33 | 604-3/8x1/8N-SS | SS316 | 7 .11 | 34 .29 | 3/8 | 1/8 NPT | |
| 34 | 604-3/8x1/4N-SS | SS316 | 7 .11 | 38 .10 | 3/8 | 1/4 NPT | |
| 35 | 604-3/8x3/8N-SS | SS316 | 7 .11 | 40 .38 | 3/8 | 3/8 NPT | |
| 36 | 604-3/8x1/2N-SS | SS316 | 7 .11 | 46 .73 | 3/8 | 1/2 NPT | |
| 37 | 604-1/2x1/4N-SS | SS316 | 9 .90 | 43 .43 | 1/2 | 1/4 NPT | |
| 38 | 604-1/2x3/8N-SS | SS316 | 9 .90 | 45 .46 | 1/2 | 3/8 NPT | |
| 39 | 604-1/2x1/2N-SS | SS316 | 9 .90 | 51 .80 | 1/2 | 1/2 NPT | |
| 40 | 604-5/8x3/8N-SS | SS316 | 12 .70 | 48 .26 | 5/8 | 3/8 NPT | |
| 41 | 604-5/8x1/2N-SS | SS316 | 12 .70 | 53 .84 | 5/8 | 1/2 NPT | |
| 42 | 604-5/8x3/4N-SS | SS316 | 12 .70 | 55 .37 | 5/8 | 3/4 NPT | |
| 43 | 604-3/4x1/2N-SS | SS316 | 14 .98 | 52 .83 | 3/4 | 1/2 NPT | |
| 44 | 604-3/4x3/4N-SS | SS316 | 14 .98 | 54 .86 | 3/4 | 3/4 NPT | |
| 45 | 604-3/4x1N-SS | SS316 | 14 .98 | 58 .42 | 3/4 | 1 NPT | |
| 46 | 604-7/8x3/4N-SS | SS316 | 17 .27 | 57 .15 | 7/8 | 3/4 NPT | |
| 47 | 604-1x3/4N-SS | SS316 | 20 .06 | 60 .70 | 1 | 3/4 NPT | |
| 48 | 604-1x1N-SS | SS316 | 20 .06 | 64 .26 | 1 | 1 NPT | |
| 49 | 604-1 1/4 -1 1/4N-SS | SS316 | 27 .68 | 77 .72 | 1 1/4 | 1 1/4 NPT | |
| 50 | 604-1 1/2 -1 1/2N-SS | SS316 | 33 .27 | 88 .90 | 11/2 | 11/2 NPT | |
| 51 | 604-2x2N-SS | SS316 | 44 .45 | 107 .44 | 2 | 2 NPT | |
| 52 | 604-1/8x1/8R-SS | SS316 | 1 .77 | 31 .50 | 1/8 | 1/8 BSPT | |
| 53 | 604-1/8x1/4R-SS | SS316 | 1 .77 | 35 .30 | 1/8 | 1/4 BSPT | |
| 54 | 604-3/16x1/8R-SS | SS316 | 3 .04 | 32 .00 | 3/16 | 1/8 BSPT | |
| 55 | 604-3/16x1/4R-SS | SS316 | 3 .04 | 35 .81 | 3/16 | .1/4 BSPT | |
| 56 | 604-1/4x1/8R-SS | SS316 | 4 .57 | 33 .02 | 1/4 | 1/8 BSPT | |
| 57 | 604-1/4x1/4R-SS | SS316 | 4 .57 | 37 .10 | 1/4 | 1/4 BSPT | |
| 58 | 604-1/4x3/8R-SS | SS316 | 4 .57 | 39 .37 | 1/4 | 3/8 BSPT | |
| 59 | 604-1/4x1/2R-SS | SS316 | 4 .57 | 45 .50 | 1/4 | 1/2 BSPT | |
| 60 | 604-5/16x1/8R-SS | SS316 | 6 .35 | 34 .29 | 5/16 | 1/8 BSPT | |
| 61 | 604-5/16x1/4R-SS | SS316 | 6 .35 | 37 .59 | 5/16 | 1/4 BSPT | |
| 62 | 604-3/8x1/8R-SS | SS316 | 7 .11 | 34 .29 | 3/8 | 1/8 BSPT | |
| 63 | 604-3/8x1/4R-SS | SS316 | 7 .11 | 38 .10 | 3/8 | 1/4 BSPT | |
| 64 | 604-3/8x3/8R-SS | SS316 | 7 .11 | 40 .38 | 3/8 | 3/8 BSPT | |
| 65 | 604-3/8x1/2R-SS | SS316 | 7 .11 | 46 .73 | 3/8 | 1/2 BSPT | |
| 66 | 604-1/2x1/4R-SS | SS316 | 9 .90 | 43 .43 | 1/2 | 1/4 BSPT | |
| 67 | 604-1/2x3/8R-SS | SS316 | 9 .90 | 45 .46 | 1/2 | 3/8 BSPT | |
| 68 | 604-1/2x1/2R-SS | SS316 | 9 .90 | 51 .80 | 1/2 | 1/2 BSPT | |
| 69 | 604-5/8x3/8R-SS | SS316 | 12 .70 | 48 .26 | 5/8 | 3/8 BSPT | |
| 70 | 604-5/8x1/2R-SS | SS316 | 12 .70 | 53 .84 | 5/8 | 1/2 BSPT | |
| 71 | 604-5/8x3/4R-SS | SS316 | 12 .70 | 55 .37 | 5/8 | 3/4 BSPT | |
| 72 | 604-3/4x1/2R-SS | SS316 | 14 .98 | 52 .83 | 3/4 | 1/2 BSPT | |
| 73 | 604-3/4x3/4R-SS | SS316 | 14 .98 | 54 .86 | 3/4 | 3/4 BSPT | |
| 74 | 604-3/4x1R-SS | SS316 | 14 .98 | 58 .42 | 3/4 | 1 BSPT | |
| 75 | 604-7/8x3/4R-SS | SS316 | 17 .27 | 57 .15 | 7/8 | 3/4 BSPT | |
| 76 | 604-1x3/4R-SS | SS316 | 20 .06 | 60 .70 | 1 | 3/4 BSPT | |
| 77 | 604-1x1R-SS | SS316 | 20 .06 | 64 .26 | 1 | 1 BSPT | |
| 78 | 604-1 1/4 -1 1/4R-SS | SS316 | 27 .68 | 77 .72 | 1 1/4 | 1 1/4 BSPT | |
| 79 | 604-1 1/2 -1 1/2R-SS | SS316 | 33 .27 | 88 .90 | 11/2 | 11/2 BSPT | |
| 80 | 604-2x2R-SS | SS316 | 44 .45 | 107 .44 | 2 | 2 BSPT | |
| 81 | 604-6MMx1/8G-SS | SS316 | 4 .1 | 32 .0 | 6мм | 1/8 BSPP | |
| 82 | 604-6MMx1/4G-SS | SS316 | 4 .1 | 35 .3 | 6мм | ? BSPP | |
| 83 | 604-6MMx3/8G-SS | SS316 | 4 .1 | 38 .4 | 6мм | 3/8 BSPP | |
| 84 | 604-6MMx1/2G-SS | SS316 | 4 .1 | 42 .9 | 6мм | ? BSPP | |
| 85 | 604-8MMx1/4G-SS | SS316 | 5 .6 | 33 .0 | 8мм | 1/4 BSPP | |
| 86 | 604-8MMx3/8G-SS | SS316 | 5 .6 | 38 .9 | 8мм | 3/8 BSPP | |
| 87 | 604-8MMx1/2G-SS | SS316 | 7 .1 | 43 .7 | 8мм | 1/2 BSPP | |
| 88 | 604-10MMx1/4G-SS | SS316 | 7 .1 | 34 .5 | 10мм | 1/4 BSPP | |
| 89 | 604-10MMx3/8G-SS | SS316 | 7 .1 | 36 .1 | 10мм | 3/8 BSPP | |
| 90 | 604-10MMx1/2G-SS | SS316 | 8 .8 | 40 .1 | 10мм | 1/2 BSPP | |
| 91 | 604-12MMx1/4G-SS | SS316 | 8 .8 | 40 .1 | 12мм | 1/4 BSPP | |
| 92 | 604-12MMx3/8G-SS | SS316 | 8 .8 | 44 .7 | 12мм | 3/8 BSPP | |
| 93 | 604-12MMx1/2G-SS | SS316 | 8 .8 | 48 .8 | 12мм | 1/2 BSPP | |
| 94 | 604-25MMx1/2G-SS | SS316 | 19 .8 | 56 .1 | 25мм | 1/2 BSPP | |
| 95 | 604-6MMxM20-SS | SS316 | 4 .1 | 42 .9 | 6мм | M20x1 .5 M | |
| 96 | 604-12MMxM20-SS | SS316 | 8 .8 | 48 .8 | 12мм | M20x1 .5 M | |
| 97 | 604-1/4x1/4G-SS | SS316 | 4 .3 | 32 .0 | 1/4 | 1/4 BSPP | |
| 98 | 604-1/2x1/2G-SS | SS316 | 7 .1 | 45 .72 | 1/2 | 1/2 BSPP | |
| 99 | 604-1/4xM20-SS | SS316 | 4 .3 | 32 .0 | 1/4 | M20x1 .5 M | |
| 100 | 604-1/2xM20-SS | SS316 | 7 .1 | 45 .72 | 1/2 | M20x1 .5 M |
604
